Airbus AIMS 04-04-003, AIMS 04-04-040 , AIMS 04-04-041, AIMS 04-04-064, ABP 4-2130, ASNA 5148, PQ No. 10050 - 240-01 Dassault: DGQT 1.7.0.0120

Product information mentioned in the technical datasheet is given for information purposes and can differ from requirements of specifications above. In that case, customer requirements are valid for your application.

Mixing ratio by weight - Base 100
Mixing ratio by volume - Base 2 V
Mixing ratio by weight - Hardener / Catalyst 43
Mixing ratio by volume - Hardener / Catalyst 1 V
Mixing ratio by weight - Water 110 to 150
Mixing ratio by volume - Water 3 V to 4 V

Mixing Procedure
Ideally, the unmixed products should be stored between 18ºC (64ºF) and 25ºC (77ºF) for 24 hours before use.
The F70-A base should be mixed for 10 minutes in a pneumatic or oscillating mixer before use.
Mix the base and the hardener until the mixture is homogenous before adding demineralized water in two stages.
The mixture must be made at a temperature between 15ºC (59ºF) and 35ºC (95ºF).
Sieve the paint through a 80-150 µm (3.1-6.0 mils) filter.
Never add additional water once the paint mixture has been made..

Induction Time - None

Spraying viscosity at 20ºC / 68ºF - (CA 4)
4 V
20 ± 3s
Spraying viscosity at 20ºC / 68ºF - (ISO 4)
4 V
33 ± 4s
Spraying viscosity at 20ºC / 68ºF - (Zahn 2)
4 V
22 ± 3s

Pot Life - 8 hours (dilution 4 V)

Note
The pot life depends on the dilution ratio.
The paint viscosity may vary depending on the temperature and increase over the pot life.
The water used to dilute the paint should be demineralised.
Depending on the material used and the application temperature, the dilution may vary between 3 V and 4 V of demineralised water.
A 3 V dilution of demineralised water is recommended for the white tints application.

Viscosities mentioned above are corresponding to the recommended range of viscosity to ensure compliant application. The range of dilution must be
used to adjust viscosity to reach the recommended one.
Water based paints show a thixotropic behaviour. This implies that efflux time can vary according different parameters such as: type of mixing, mixing
quantity, dilution, temperature, time between mixing and viscosity measurement

ISO 4 cup is the reference cup. The others are give for information purposes

Mixing ratio by weight - Base 100
Mixing ratio by volume - Base 2 V
Mixing ratio by weight - Hardener / Catalyst 42
Mixing ratio by volume - Hardener / Catalyst 1 V
Mixing ratio by weight - Water 0 V or from 35 to 50
Mixing ratio by volume - Water0 V or of 1 V in 1.5

Mixing Procedure
Remove the safety ring and press down on the cap to release the F70-A hardener. Shake the container for approximately 1 minute. Remove the cap to be able to apply the F70-A topcoat with a suitable brush. If the material after shaking of 1min is not homogenious please use a stick for futher mixing (around 1 min) until the material is homogen.
Do not hermetically close TUK after mixing base and hardener.

Induction Time - In case of dilution, wait 3 minutes before adding demineralized water

Pot Life - 2 hours undiluted

Note - Spray with dry, oil-free air.

Gloss levels have been determined using glossmeter with an angle of incidence of 60°. The theorical consumption value doesn't take into account the transfer efficiency for spray application

Drying times have been determined using test pieces of a thickness < 2 mm and for 20 µm (0.8 mils) of dry film.
Before accelerated drying = 70°C (158°F), leave to flash off for at least 15 minutes at room temperature.
To recoat F70-A top coat with another product, contact us. For the F70-A top coat infrared drying, contact us.
MEK Resistance: After 10 hours at 23°c

Top coat F70-A should be applied on Mapaero P60-A primer.
See recoating time recommended on the P60-A primer technical data sheet.
All recommendations mentioned above are given for information.

Apply several coats to achieve 20 µm to 30 µm (0.8 to 1.2 mils) dry thickness.
The number of coats depends on the size and the shape of the part to which it is being applied.
The recommended dynamic air pressure is 1.5 bar to 4 bar (22 to 58 psi).

Clean the equipment with a suitable cleaning solvent such as Mapaero D760, Mapaero D770-B aqueous cleaning solvent can also be used for cleaning the ready-to-use mixture.

In the event of a defect, contact your Quality Department. In case of low thickness:
Apply a thin coat of F70-A to achieve the desired thickness. If the above recommended recoating time is exceeded, reactivate with a Scotch-Brite type.

In case of thick coats:
Contact you Quality Department.

If there are micro-bubbles, running, rejects or numerous inclusions:
Reactivate the surface using an abrasive paper (grade 220 to 320), remove the dust then clean the surface using an approved cleaning product. Apply a
thin coat of F70-A to achieve the required thickness.

In case of significant defects:
Remove the F70-A primer with an approved chemical paint remover or make a selective stripping to the P60-A primer. A surface treatment and the P60-
A primer application sould be done once again in case the substrate is exposed.

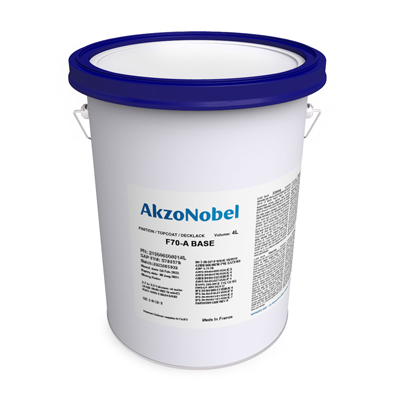

The F70-A base is available in 4 kg and 200 kg.
The hardener is available in 2 L and 200 L.
Kits are also available:

• 4 L Kits: 1,2L Base F70-A + 0,6 L Hardener F70-A;
• 45 ml Touch-Up Kits (TUK) containing 30 ml Base F70-A + 15 ml Hardener F70-A;
• 12 ml Mini Touch-Up Kits (TUK) containing 8 ml Base F70-A + 4 ml Hardener F70-A.
