Airbus - 80-T-35-5218
Airbus - A2MS 565-007 Ty E class2 Semi-Gloss (White FS 27875 and Dark gray FS26473)
Airbus - ABP 4-2128
Airbus - AIMS 04-04-009
Airbus - AIMS 04-04-018
Airbus - AIMS 04-04-043
Airbus - AIMS 04-04-047
Airbus - CML 04QAB2
Airbus - CML 16-021
Airbus - PQ10050-053-03 (gray)
Airbus - PQ10050-055-04 (blue)
Aircelle - HMRC0131A
Bombardier - BAMS 565-007B Type EC2SG
Pilatus - PMS0600-52-02

Product specifications change constantly, to ensure the most accurate information regarding specifications.

Store the product dry and at a temperature between 5 and 35ºC / 41 and 95ºF per AkzoNobel Aerospace Coatings specification. Store in the original unopened containers. Storage temperature and shelf life may vary per OEM specification requirements. Refer to the container label for specific storage life information.

12 months for Touch-Up Kits stored between 5°C and 35°C (41°F and 95°F) in full and sealed original packaging.

Drying times have been determined using test pieces of a thickness < 2 mm and for 20 µm (0.8 mils) of dry film. Before accelerated drying = 70°C (158°F), leave to flash off for at least 15 minutes at room temperature. For the F69 infrared drying top coat, contact us.

The F69 direct adhesion top coat is used:
On various aircraft assemblies: Make sure that the surface is clean and free from contaminants. Reactivation using an abrasive pad may be necessary, followed by cleaning with an approved solvent. F69 can be applied on all types of assemblies (aluminium alloys, titanium, etc.). On sealants and on structural primers and finishes: contact us for compatible materials.All recommendations mentioned above are given for information.

F69 Base : Volume - 2 parts, Weight - 100 parts
F69 Hardener : Volume - 1 parts, Weight - 37 parts
Water (AIMS 09-00-003 Grade C) : Volume - 2.7 to 3.3 parts, Weight - 90 to 110 parts

Mixing Procedure

Ideally, the unmixed products should be stored between 18°C and 25°C (64°F and 77°F) for 24 hours before use.

• The F69 base should be stirred for 10 minutes in a pneumatic or oscillating mixer before use.
• Mix the base and hardener until the mixture is homogenous before adding water in two stages.
• The mixture must be made at a temperature between 15°C and 35°C (59°F to 95°F).
• Sieve the paint through a 80-150 µm (3.1-5.9 mils) filter.
• Never add additional water once the paint mixture has been made.

Viscosity measurements are provided as guidelines only and are not to be used as quality control parameters. Certified information is provided by certification documentation available on request.

8 hours (3.3 V dilution)

Pot life depends on the dilution ratio.
The paint viscosity may vary depending on the temperature and increases over the pot life. Depending on the flow cup used and the application temperature, the dilution may vary between 2.7 V and 3.3 V of water.

Viscosities mentioned above correspond to the recommended range of viscosity to ensure compliant application. The range of dilution must be used to adjust viscosity to reach the recommended one. Water based paints show a thixotropic behavior. This implies that efflux time can vary according different parameters such as: type of mixing, mixing quantity, dilution, temperature, time between mixing and viscosity measurement.

ISO 4 cup is the reference cup. The others are given for information purposes.

F69 Base : Volume - 2 parts, Weight - 100 parts, F69 Hardener : Volume - 1 part, Weight - 37 parts, Water (AIMS 09-00-003 Grade C) : Volume - 0 or 1 to 1.5 parts, Weight - 0 or 35 to 50 parts

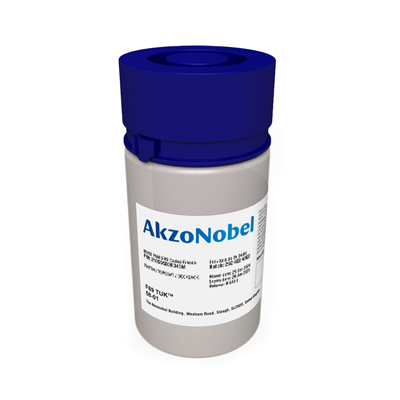

How to use a TUK:

Remove the safety ring and press down on the cap to release the F69 hardener. Shake the container for approximately 1 minute. Remove the cap to be able to apply the F69 topcoat with a suitable brush. If the material is not homogeneous after 1min. shaking please use a stick for further mixing (around 1 minute) until the material is homogeneous

Do not hermetically close TUKs after mixing base and hardener.

2 hours Undiluted

Apply several coats to achieve 20 µm to 30 µm (0.8 to 1.2 mils) dry thickness. The number of coats depends on the size and the shape of the part to which it is being applied. The recommended dynamic air pressure is 1.5 bar to 4 bar (22 to 58 psi).

Topcoat F69 may be applied in conditions outside of the limits shown above. However, it is recommended to be careful to ensure a satisfactory result. Please contact your local AkzoNobel Aerospace Coatings representative to determine the proper application techniques when environmental conditions are outside of the recommended range.

Gravity Compressed Air Gun Nozzle 0.8 to 1.8 mm.

In the event of a defect, contact your Quality Department.
In case of too low thickness:
Apply a thin coat of the F69 to achieve the required thickness. If the above recommended recoating time is exceeded, reactivate with an abrasive pad.

For too thick coats:
Contact your Quality Department.

If there are micro-bubbles, runs, fish-eyes or numerous inclusions:
Reactivate the surface using an abrasive paper (grade 220 to 320), remove the dust then clean the surface using an approved cleaning product. Apply a thin coat of F69 to achieve the required thickness.

If there are significant defects:
Remove the F69 with an approved chemical paint stripper or remove using a plastic medium (in this case, the surface treatment has to be re-done).

Clean the equipment with a suitable cleaning solvent such as Mapaero D760.

The information in this data sheet is not intended to be exhaustive and is based on the present state of our knowledge and on current laws: any personusing the product for any purpose other than that specifically recommended in the technical data sheet without first obtaining written confirmation from us asto the suitability of the product for the intended purpose does so at his own risk. It is always the responsibility of the user to take all necessary steps to fulfillthe demands set out in the local rules and legislation. Always read the Material Data Sheet and the Technical Data Sheet for this product if available. Alladvice we give or any statement made about the product by us (whether in this data sheet or otherwise) is correct to the best of our knowledge but we haveno control over the quality or the condition of the substrate or the many factors affecting the use and application of the product. Therefore, unless wespecifically agree in writing otherwise, we do not accept any liability whatsoever for the performance of the product or for any loss or damage arising out ofthe use of the product. All products supplied and technical advice given is subject to our standard terms and conditions of sale. You should request a copy ofthis document and review it carefully. The information contained in this data sheet is subject to modification from time to time in the light of experience andour policy of continuous development. It is the user's responsibility to verify that this data sheet is current prior to using the product. Brand names mentionedin this data sheet are trademarks of or are licensed to AkzoNobel.
